Key features:
- MT6789 (2 Arm) ® Cortex-A76 core, operating frequency of 2.2GHz, 6 Arm ® Cortex-A55 core, operating at a frequency of 2.0GHz
- Android 13
- Memory: 6G+128G Optional: 8G+128G, 8G+256G
- 10.1-inch resolution 1200X1920
-
Positioning accuracy: RTK 1.5cm (H)/GNSS 2.5m CEP
- 2G, 3G, 4G wireless communication, NFC
- GPS/QZSS: L1C/A,L2P(W),L5
- BDS: B1I,B2I,B3I,B1C,B2a
- Galileo: E1,E5a,E5b
- GLONASS: G1,G2
- Battery/Charging: 10000mAh/30W PD Fast Charge

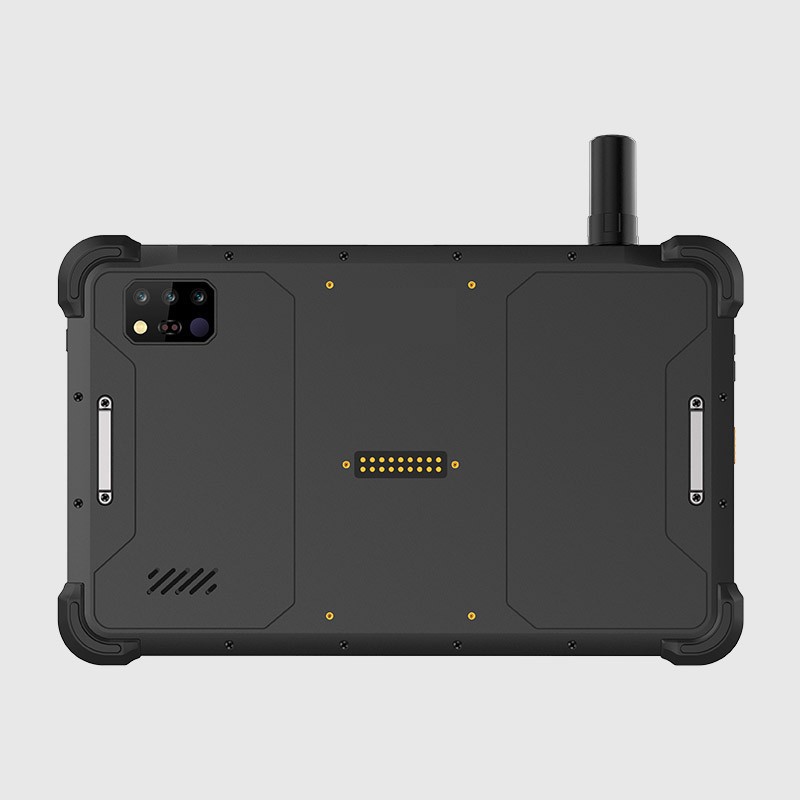

Y100 is an GNSS Rtk Tablet by LQYCIT. 10.1-inch high-definition large screen, 8-core 2.2GHz high-performance CPU, standard configuration: 6G+128G memory, Android 13 system, 4G communication, WIFI, BT, IP67+1-meter drop.
Integrated high-precision GNSS positioning board, built-in RTK algorithm, paired with four arm spiral antenna, supporting centimeter level accuracy. Support BDS, GPS, GALILEQ, GLONASS, QZSS full system GNSS. High precision data collection is applied to various spatial data collection, inspection and patrol work.
Widely used in land, electricity, forestry, environmental protection, highways, railways, ship monitoring, oil and gas pipelines, mining exploration and other operations.
GNSS Rtk Tablet used in a wide range of extreme conditions. Perfect Drop-proof, Waterproof and Dust-proof. One-stop rapid customization services.
An Android GNSS RTK tablet with a sunlight-readable display, ideal for GIS data collection and surveys.
Strong performance hardcore configuration
High performance 8-core 2.2 GHz processor:MT6789 (2 Arm) ® Cortex-A76 core, operating frequency of 2.2GHz, 6 Arm ® Cortex-A55 core, operating at a frequency of 2.0GHz. Android 13 operating system, standard configuration: 6GB+128GB memory, optional: 8GB+128GB, 8G+256G. Running faster and more stable.
RTK centimeter level positioning accuracy
Y100 Rtk Tablet Integrated high-sensitivity GNSS module, external four arm spiral antenna, achieves centimeter level navigation accuracy by receiving calibration data from base stations. Supports multiple satellite systems such as GPS, GLONASS, Galileo, Beidou, QZSS, and SBAS, providing reliable RTK positioning even in the most challenging environments.
GNSS RTK module options: UM960, UM980, UM982, UBLOX-9N, UBLOX-F9P.
10.1-inch HD display screen
The Rtk Tablet device adopts a 10.1-inch resolution of 1200X1920, for a larger field of view and clearer images.
Long lasting endurance of large capacity batteries
Built in 10000 mAh polymer lithium battery, with a working time of over 10 hours and ultra long battery life, can meet the needs of long-term outdoor work.
Type-C 30W PD fast charging
The charging time is 2-3 hours, using the standard power adapter and data cable.

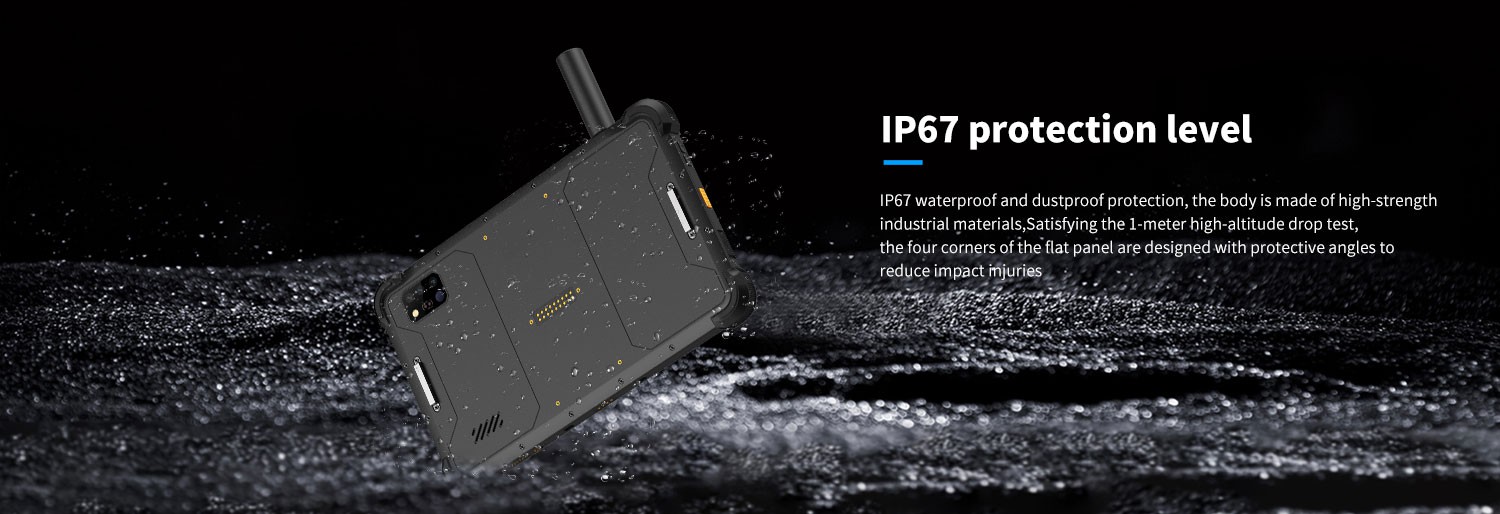

Protection level
IP67 dustproof and waterproof; The body is made of high-strength industrial materials, which are sturdy and durable, and can meet the requirements of a 1-meter high-altitude drop test. The four corners of the tablet are designed with protective angles, effectively reducing impact injuries.
Provide ODM and OEM customized services
We work closely with our partners and can provide various one-stop customized solutions.
Appearance customization: supports customization of product nameplates, product packaging, and promotional materials.
Hardware customization: Supports customization of functional modules and optional hardware functions.
Software customization: supports customization of boot interface, boot program, kernel clipping, and API interface.
Technical support: Provide SDK development kits and application software development technical services.
Hardware customization
1: Nameplate Logo Customization
2:Packaging Custom Design
Software customization
- 1:Boot Screen Customization
- 2:System Function Hiding
- 3:Built-in Customer App
- 4:Customer App Auto-launch
- 5:Platform Software Integration
- 6:Fixed MAC Address
- 7:Download Prohibition
- 8:USB Disablement
- 9:APP Installation and Uninstallation Control
- 10:Pre-installed APK
- 11:Camera Control
-
12:Provide System Signing Fi
Frequently asked questions
Q: Are you the original manufacturer?
A: Yes, we are the original manufacturer. We have our own brand LQYCIT. All of our products have complete patented ID/MD designs, hardware and software, molds, and assembly are all completed by our own team.
Q: Can you pre install our software?
A: Yes, we can pre install your software.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If necessary, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm the minimum order quantity.
Q: Can we get free samples?
A: Sorry, we usually do not provide free samples. If the customer confirms the specifications and pricing, they can first order samples for testing and evaluation.
Q: How to place an order and make payment?
A: We accept wire transfers (bank transfers), Alibaba online payments, and Western Union remittances.
Q: What is the warranty period for your products?
A: We offer a 12-month warranty after shipment.
Q: How long is the delivery time?
A: The production delivery cycle is about 3-10 days, depending on the requirements. The delivery time through DHL/UPS/FedEx/TNT is approximately 3-5 working days. For some remote areas, the transportation time may be longer.
Q: How to fix equipment problems?
A: We will provide online technical support to solve problems. For hardware issues, we can ship parts or components for customers to install (if they have technicians), or we can ship them back to us for repairs.
|
Basic Information |
|
|
processor |
MT6789 (2 Arm) ® Cortex-A76 core, operating frequency of 2.2GHz, 6 Arm ® Cortex-A55 core, operating at a frequency of 2.0GHz |
|
operating system |
Android 13 |
|
RAM+ROM |
6G+128G Optional: 8G+128G;8G+256G |
|
Expand memory |
Micro SD card, supports up to 512GB |
|
display |
10.1-inch resolution 800 * 1280 optional: 1200X1920 |
|
Touch Screen |
Capacitive screen: supports multi touch, glove touch |
|
Rear camera |
Rear 1600W pixels support autofocus and flash |
|
Front Camera |
Front 500W pixel (optional) |
|
audio |
Main MIC*1, Noise Reduction and Echo Cancellation*1 |
|
Speaker (4W) * 1 |
|
|
prompt |
2 RGB lights |
|
Vibrating motors |
|
|
keystroke |
Left: Volume +-, Scan key Right side: Power on button Front: 4 custom function keys |
|
External interfaces |
Left: TYPC-A Right side: SIM card holder + TF card holder, TYPC-C Top: RTK antenna interface |
|
Booths |
Nano SIM card * 2&Nano SIM card x 1+T_FLASH * 1 |
|
sensor |
Light proximity sensor, gravity sensor, magnetometer Optional: gyroscope, barometer |
|
battery |
10000 mAh polymer lithium battery, Standby time> 350 hours Working time> 10 hours (depending on the usage environment) |
|
Charging method |
Type-C 30W PD fast charging The charging time is 2-3 hours, using the standard power adapter and data cable |
|
Communication Transmission |
|
|
WLAN function |
Dual-band 2.4GHZ/5Ghz, support IEEE 802 a/b/g/n/ac protocol |
|
Bluetooth |
Supports Bluetooth 2.1+EDR/3.0+HS/4.1+HS+5.0 |
|
GNSS |
Supports GPS, Galileo, Glonass, Beidou |
|
Wireless WAN (Data Service) |
GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE |
|
Wireless WAN (Network Frequency) |
2G：GSM(B2/B3/B5/B8) 3G：WCDMA(B1/B2/B5/B8) 4G：FDD:B1/B2/B3/B5/B7/B8/B20/B25/B26/B28 TDD:B34/B38/B39/B40/B41 |
|
RTK |
|
|
parameter |
performance indicators |
|
GNSS tracking channel |
1408 |
|
GNSS receiving frequency point |
GPS/QZSS: L1C/A, L2C, L5 |
|
BDS: B1, B2, B2a, B31. |
|
|
Galileo: E1. E5a |
|
|
GLONASS: L1,L2. |
|
|
Data update rate |
PVT maximum value 10Hz |
|
RTK maximum value 5Hz |
|
|
positioning accuracy |
GNSS 2.5m CEP |
|
D-GNSS <1.0m CEP |
|
|
RTK 1.5cm+ 1ppm(H) |
|
|
Speed and time accuracy |
GNSS 0.1m/s CEP |
|
1PPS 20ns |
|
|
Time of first positioning (TTFF) |
Hot start for 2 seconds |
|
Cold start for 24 seconds |
|
|
RTK convergence time<10s |
|
|
sensitivity |
Cold start -148dBm |
|
Hot start -158dBm |
|
|
Re capture -160dBm |
|
|
Tracking&Navigation -1 62 dBm |
|
|
Application limits |
Speed 515 meters per second |
|
Height 18000 meters |
|
|
Optional functions |
|
|
NFC |
Operating frequency: 13.56MHz agreement ：ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2 Tag standard: M1 card(S50, S70), CPU card, NFC tag, etc Reading and writing distance: 1-3cm |
|
Environmental parameters |
|
|
Operating temperature |
-20℃~55℃ *For safety reasons, do not charge in a low temperature environment |
|
Storage temperature |
-40°C~70°C (without battery) |
|
humidity |
0~95% (no condensation) |
|
Drop Specs |
The 1-meter concrete floor fell many times |
|
Ingress protection |
IP67 |
|
Electrostatic discharge |
±15KV (air discharge), ±8KV (contact discharge) |
|
Development support |
|
|
Development language |
Java |
|
Develop APIs |
Android standard interface |
|
Structural parameters |
|
|
Dimensions (mm). |
290.6*182.5*18.5mm |
|
Weight as standard |
980g |
|
Equipment accessories |
|
|
Standard accessories |
Adapters, data cables, protective films |
