Key features:
- 8 core 2.0GHz, Android 13, 4G+64G
- 6-inch screen, Thermal sticker printer
- 2G, 3G, 4G wireless communication,NFC
- Barcode, QR code scanning
HT600 handheld pda printer is a high-performance barcode, QR code scanning, and thermal printing handheld terminal independently developed by LQYCIT. Android 13 operating system, equipped with a high-performance 8-core 2.0GHz clock speed processor, 6-inch high-definition large screen, and 16 million camera; Standard memory 3G+32G,Function options: barcode, QR code scanning NFC, Thermal printing. IP68 protection level, strong industry adaptability, widely used in various application fields such as logistics, retail, warehousing, medical, power, one card, parking fees, government projects, etc., helping users quickly achieve information management and improve enterprise operation efficiency.
High performance CPU
The HT600 handheld pda printer adopts a high-performance eight core 2.2GHz CPU, which can provide lightning fast response speed when running applications and processing large amounts of inventory data. It is equipped with a brand new Android 13 operating system, providing a better work experience, improving application compatibility, and enhancing enterprise level data security protection.
6-inch high-definition large screen
The 6-inch IPS display has a resolution of 1440 × 720P. The industrial grade high brightness screen provides good visibility even in outdoor sunlight. A larger screen provides a more interactive experience. The rear 16 megapixel camera has autofocus function, making it easy to capture high-quality live images.

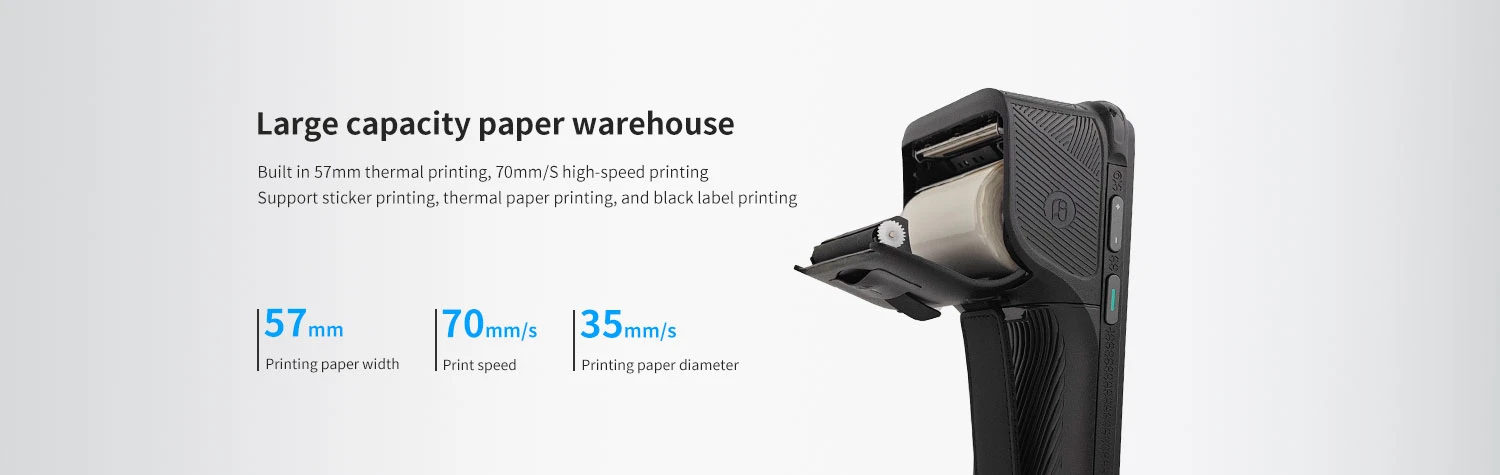

Thermal printing
Printing paper width 57mm, diameter 35mm
Printing paper types: Supports sticker printing, thermal paper printing, and black label printing
Data collection
Barcode scanning: comes standard with professional barcodes and a QR code scanning engine. Whether it's stains, reflections, or long-distance barcodes, it can achieve precise and fast "scan and get".
NFC function: Integrated NFC read-write module, operating frequency: 13.56MHz; Protocol standards: Supports ISO14443A/B and 15693 protocols; Perfectly supports near-field recognition applications such as employee cards, membership cards, device tags, and smart cards.
Ultra long battery life, online all day long
Equipped with a rechargeable polymer battery (standard 7.7V, 4000mAh), a large capacity detachable battery that supports fast charging technology and can replace the RTC battery without shutting down. Ensure that the device can still support full class operation under high-intensity use without frequent charging.

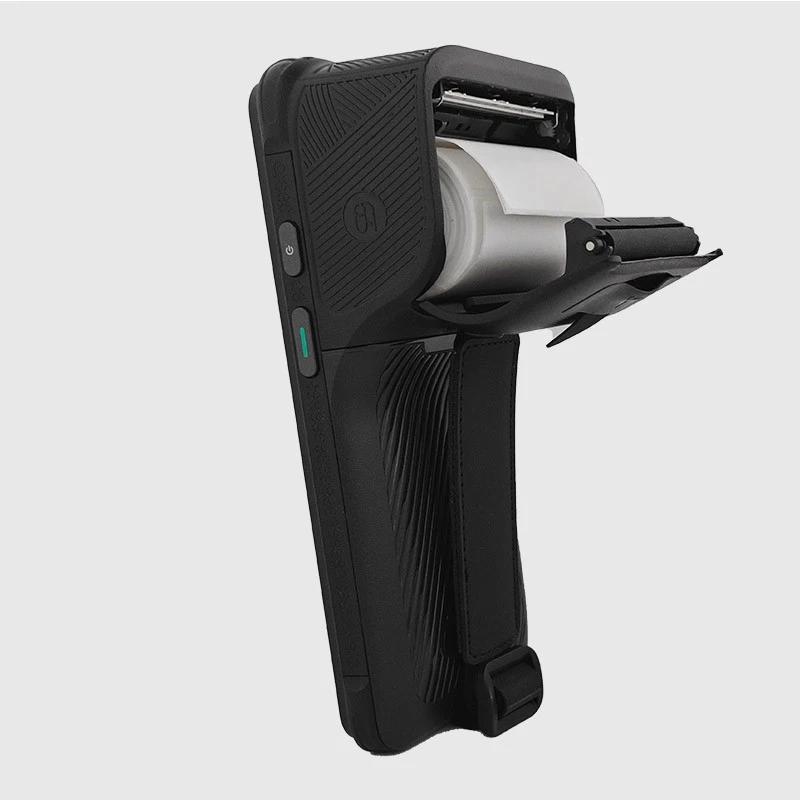

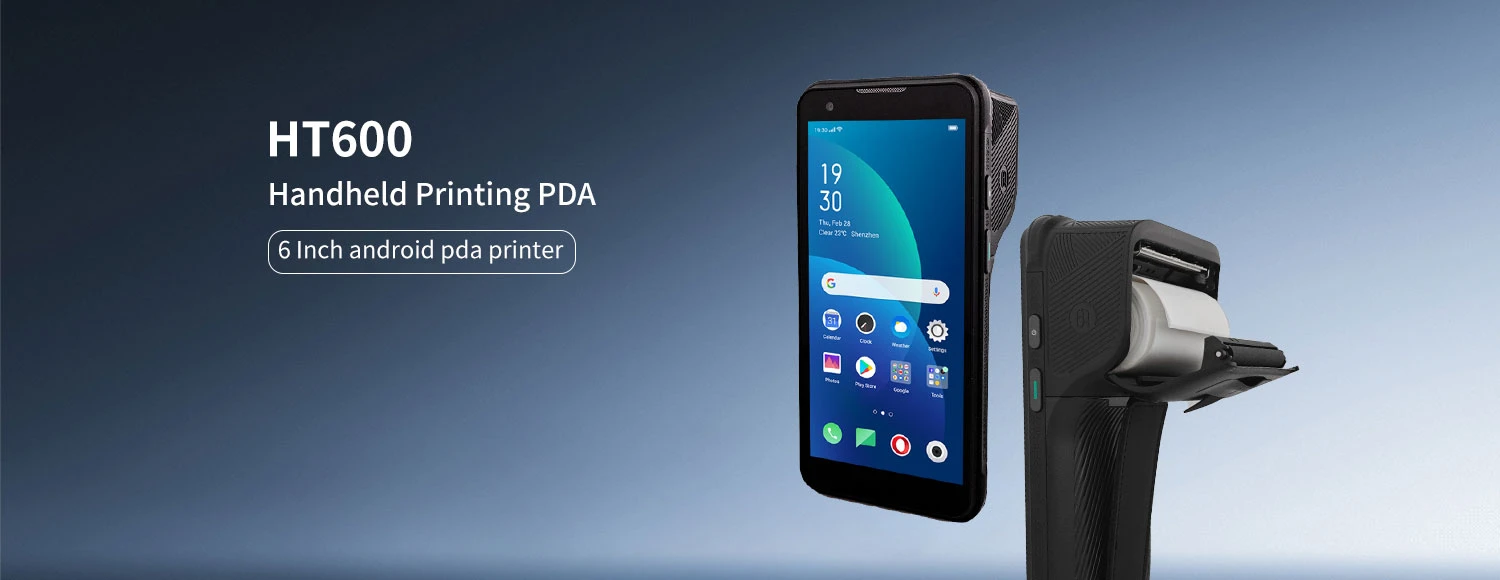

HT600-handheld pda printer
|
Basic Information |
|
|
Processor |
8-core 2.0GHz high-performance processor |
|
Operating system |
Android 13 |
|
Memory (RAM+ROM) |
3GB+32GB (optional: 4GB+64GB, 6G+128GB) |
|
Expand memory |
Micro SD card, supports up to 256GB |
|
Display screen |
6-inch IPS display screen resolution 1440 × 720P, optional 2160X1080P |
|
Touch screen |
Multi touch, can be operated with water on the screen or wearing gloves |
|
Rear camera |
1600W pixel high-definition camera, supporting autofocus and flash |
|
Front camera |
500W pixel camera (optional) |
|
Audio |
Speaker (mono), microphone x 2, earpiece |
|
Prompt |
Vibration prompt/LED prompt/audio prompt |
|
Keyboard |
Silicone buttons: power button, volume+/- button, scan button x 2 |
|
Booth |
Nano SIM card x1/PSM card x1 (TF card) |
|
Battery |
Rechargeable polymer battery (standard 7.7V/3.85V 4000/8000mAh) Standby time>750 hours Working hours>12 hours (depending on different working conditions) Supports 18W fast charging and detachable battery RTC power down retention for 5 minutes Charging time<3 hours (using standard fast charging power adapter and data cable) |
|
Sensor |
Light proximity sensor, distance sensor, gravity sensor Optional: gyroscope, electronic compass |
|
Communication transmission |
|
|
USB port |
Type-C USB x 1, Support OTG function |
|
WLAN function |
Dual band 2.4GHZ/5Ghz, supporting IEEE 802 a/b/g/n/ac protocols |
|
Bluetooth |
Supports BT 5.0, with a transmission distance of 5-10 meters |
|
GPS |
Supports GPS, Galileo, Glonass, Beidou |
|
Wireless Wide Area Network |
2G: GSM (Mobile/Unicom), CDMA (Telecom) 3G: WCDMA (China Unicom), CDMA 2000 (China Telecom), TD-SCDMA (China Mobile) 4G: TD-LTE (Mobile), FDD-LTE (China Unicom, China Telecom) |
|
Thermal printing |
|
|
Print speed |
70mm/s |
|
Printing points |
384dots |
|
Printing paper width |
57mm |
|
Printing paper diameter |
35mm |
|
Printing paper type |
Support sticker printing, thermal paper printing, and black label printing |
|
Optional configuration |
|
|
2D scanning engine |
Soft solution: MD5066/Honeywell N5703/CM60 Hard solution: N660 |
|
Support 2D barcode type |
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code,etc. |
|
Optional configuration |
|
|
NFC |
Working frequency: 13.56MHz Protocol standards: Supports ISO14443A/B and 15693 protocols |
|
Low frequency RFID (optional) |
Support, 125K (distance 3-5cm)/134.2K (distance 10-17cm) |
|
Fingerprint recognition |
Support the authentication of fingerprint modules by the Ministry of Public Security |
|
Environmental parameters |
|
|
Operating Temperature |
-20℃-60℃ *For safety reasons, please do not charge in low temperature environments |
|
Storage temperature |
-40 ℃ to 70 ℃ |
|
Humidity |
5% RH -95% RH (no condensation) |
|
Drop specification |
Within the operating temperature range, all 6 sides of the host can withstand a height of 1.5 meters (excluding the printing paper compartment) |
|
Protection level |
Host IP68 (excluding printing paper compartment) |
|
Development support |
|
|
Development language |
Java |
|
Develop API |
Android Standard Interface |
|
Structural parameters |
|
|
Size (mm) |
169.5×83.2×18.2mm(The host does not include a print head) |
|
Weight |
＜350g (Depends on the device's functional configuration) |
|
Equipment accessories |
|
|
Standard configuration |
Adapter, data cable, protective film, instruction manual, hand rope |
|
Optional |
charging dock |
Frequently asked questions
Q: Are you the original manufacturer?
A: Yes, we are the original manufacturer. We have our own brand LQYCIT. All of our products have complete patented ID/MD designs, hardware and software, molds, and assembly are all completed by our own team.
Q: Can you pre install our software?
A: Yes, we can pre install your software.
Q: What is the minimum order quantity?
A: We accept standard product orders starting from one unit. If necessary, we can even customize your logo. For OEM, our sales team will review the detailed requirements and confirm the minimum order quantity.
Q: Can we get free samples?
A: Sorry, we usually do not provide free samples. If the customer confirms the specifications and pricing, they can first order samples for testing and evaluation.
Q: How to place an order and make payment?
A: We accept wire transfers (bank transfers), Alibaba online payments, and Western Union remittances.
Q: What is the warranty period for your products?
A: We offer a 12-month warranty after shipment.
Q: How long is the delivery time?
A: The production delivery cycle is about 3-10 days, depending on the requirements. The delivery time through DHL/UPS/FedEx/TNT is approximately 3-5 working days. For some remote areas, the transportation time may be longer.
Q: How to fix equipment problems?
A: We will provide online technical support to solve problems. For hardware issues, we can ship parts or components for customers to install (if they have technicians), or we can ship them back to us for repairs.
|
Basic Information |
|
|
processor |
8-core 2.0GHz high-performance processor |
|
operating system |
Android 13 |
|
Memory (RAM+ROM) |
3GB+32GB (optional: 4GB+64GB, 6G+128GB) |
|
expand memory |
Micro SD card, supports up to 256GB |
|
display screen |
6-inch IPS display screen resolution 1440 × 720P, optional 2160X1080P |
|
touch screen |
Multi touch, can be operated with water on the screen or wearing gloves |
|
rear camera |
1600W pixel high-definition camera, supporting autofocus and flash |
|
front camera |
500W pixel camera (optional) |
|
audio |
Speaker (mono), microphone x 2, earpiece |
|
prompt |
Vibration prompt/LED prompt/audio prompt |
|
keyboard |
Silicone buttons: power button, volume+/- button, scan button x 2 |
|
booth |
Nano SIM card x1/PSM card x1 (TF card) |
|
battery |
Rechargeable polymer battery (standard 7.7V/3.85V 4000/8000mAh) Standby time>750 hours Working hours>12 hours (depending on different working conditions) Supports 18W fast charging and detachable battery RTC power down retention for 5 minutes Charging time<3 hours (using standard fast charging power adapter and data cable) |
|
sensor |
Light proximity sensor, distance sensor, gravity sensor Optional: gyroscope, electronic compass |
|
Communication transmission |
|
|
USB port |
Type-C USB x 1, Support OTG function |
|
WLAN function |
Dual band 2.4GHZ/5Ghz, supporting IEEE 802 a/b/g/n/ac protocols |
|
Bluetooth |
Supports BT 5.0, with a transmission distance of 5-10 meters |
|
GPS |
Supports GPS, Galileo, Glonass, Beidou |
|
Wireless Wide Area Network |
2G: GSM (Mobile/Unicom), CDMA (Telecom) 3G: WCDMA (China Unicom), CDMA 2000 (China Telecom), TD-SCDMA (China Mobile) 4G: TD-LTE (Mobile), FDD-LTE (China Unicom, China Telecom) |
|
thermal printing |
|
|
Print speed |
70mm/s |
|
Printing points |
384dots |
|
Printing paper width |
57mm |
|
Printing paper diameter |
35mm |
|
Printing paper type |
Support sticker printing, thermal paper printing, and black label printing |
|
Optional configuration |
|
|
2D scanning engine |
Soft solution: MD5066/Honeywell N5703/CM60 Hard solution: N660 |
|
Support 2D barcode type |
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code, MaxiCode,Hanxin Code,etc. |
|
Optional configuration |
|
|
NFC |
Working frequency: 13.56MHz Protocol standards: Supports ISO14443A/B and 15693 protocols |
|
Low frequency RFID (optional) |
Support, 125K (distance 3-5cm)/134.2K (distance 10-17cm) |
|
Fingerprint recognition |
Support the authentication of fingerprint modules by the Ministry of Public Security |
|
environmental parameters |
|
|
Operating Temperature |
-20℃至60℃ *For safety reasons, please do not charge in low temperature environments |
|
Storage temperature |
-40 ℃ to 70 ℃ |
|
humidity |
5% RH -95% RH (no condensation) |
|
drop specification |
Within the operating temperature range, all 6 sides of the host can withstand a height of 1.5 meters (excluding the printing paper compartment) |
|
Protection level |
Host IP68 (excluding printing paper compartment) |
|
Development support |
|
|
development language |
Java |
|
Develop API |
Android Standard Interface |
|
structural parameters |
|
|
Size (mm) |
169.5×83.2×18.2mm(The host does not include a print head) |
|
weight |
＜350g (Depends on the device's functional configuration) |
|
Equipment accessories |
|
|
Standard configuration |
Adapter, data cable, protective film, instruction manual, hand rope |
|
optional |
charging dock |
